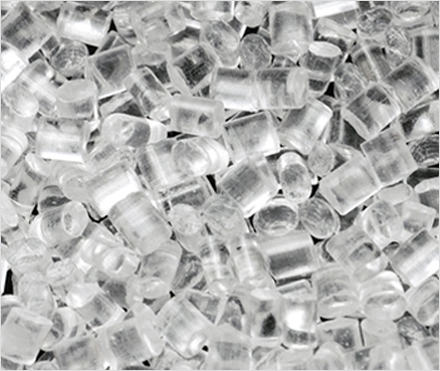

High Hardness TPEs

High Hardness TPEs

Product description: high-hardness (≥90A) TPU materials, with problems of abnormal glue, surface scratches, uneven bright fog, surface tingling, particles, etc, which are caused by excessive crystallization speed in the process of pipeline extrusion.While ATP's new series TPU can Effectively solve those problems.

Applicable: all kinds of TPU cables and casings with a hardness requirement of more than 90A for the sheath

Product features:

1. In the case of high hardness (90A-98A), it still has very appropriate melt fluidity and crystallization speed, which solves the common problems of high hardness TPU materials in the pipeline extrusion process: abnormal glue, surface Scratches, uneven fog, surface numbness, particles, and other poor quality;

2. Excellent mechanical properties and elasticity; glossy and matte materials are available;

3. Processing characteristics: The production efficiency of 60-100 meters per minute can be achieved by using the same PVC screw machine.

Technical Data of High Hardness TPEs

Technical Data SheetModel

Material Properties
Test Standard
Test Condition
Unit
2898F-ESS-1183S
General Characteristics
Material Category---
Appearance(Light/Semi-matte/Frosted)---
Extrusion/Injection
---
Physical CharacteristicsHardnessISO 4815SShore A98
ProportionISO 1183-g/cm³0.898
Melt IndexISO 1133-1:2011190℃/2.16kgg/10min9.1
Brittle TemperatureISO 812-
Mechanical Properties
ElongationISO37:2017200mm/min%217
Tensile StrengthISO37:2017200mm/minMpa37.229
Tearing StrengthISO34-1:2015500mm/minKN/m
Hot Air AgingElongation Retention RateISO37:2017-%
Tensile Strength Retention RateISO37:2017-%
Electrical Performance
Volume ResistivityASTM D257-Ohm-cm
PermittivityASTM D150--
Combustion PerformanceVertical Burning TestUL 943.0/6.0mm-
Oxygen IndexASTM D2863-%
Feature


Key Benefits of High Hardness TPEs

Key Benefits of High Hardness TPEs

· Competitive price      · Respond immediately      · Strong R&D capability      · Excellent after-sales service
